Pressure Die Casting Company | Custom Aluminum Die Casting

Our Pressure Die Casting Manufacturing Capabilities

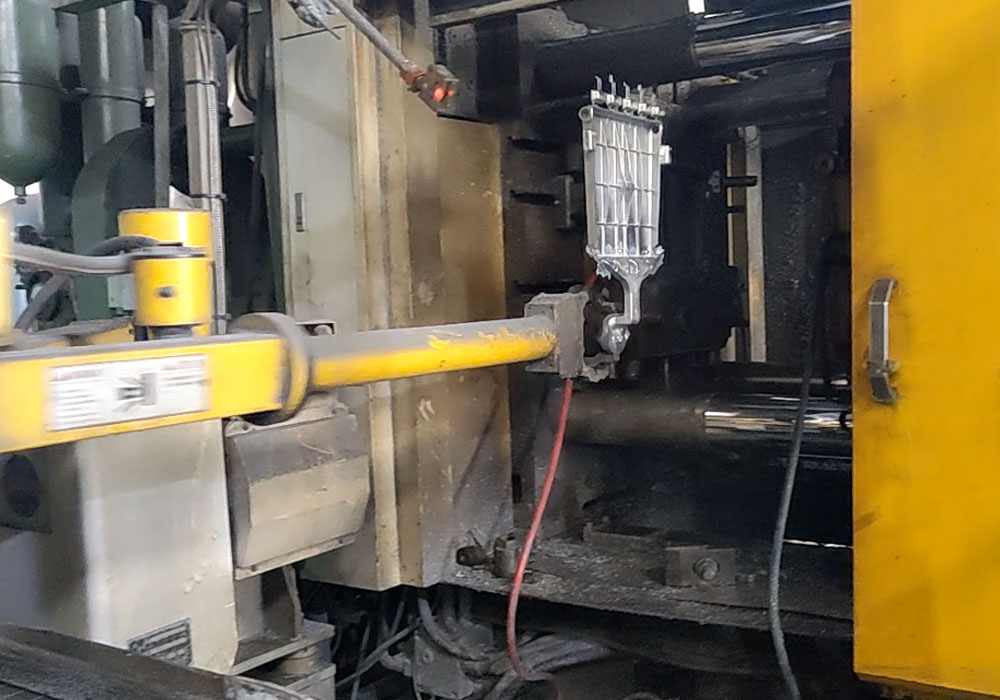

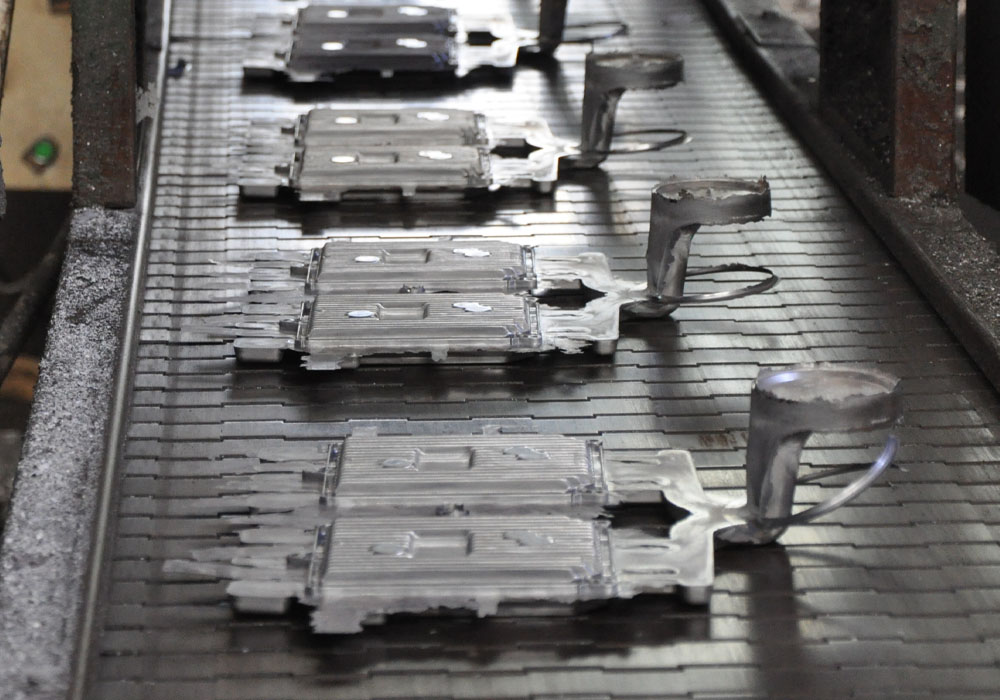

● High Pressure Die Casting (HPDC)

We specialize in high-pressure aluminum die casting, using advanced die casting machines and automated production systems to manufacture complex aluminum components with consistent quality and dimensional accuracy.

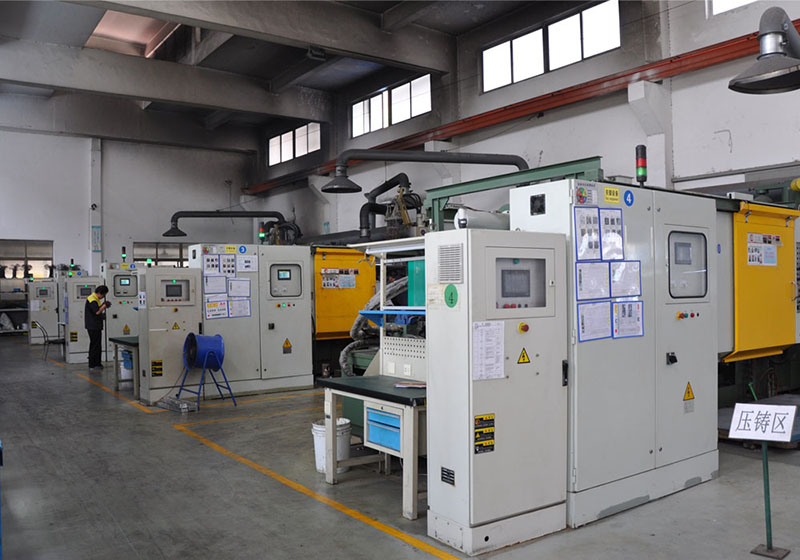

Our foundry's high pressure die casting production line include 20 hot-chamber and cold-chamber die casting machines, ranging from 280 to 3,000 tons, with brands such us Swiss BUHLER, Japanese Toshiba and Chinese L.K. etc., in order to meet the needs of different sizes of die castings.

● Custom Die Casting Mold Development

Our engineering team evaluates customer drawings and performs Design for Manufacturing (DFM) before mold development. We optimize part design, mold structure and casting parameters to support stable production and reliable part quality.

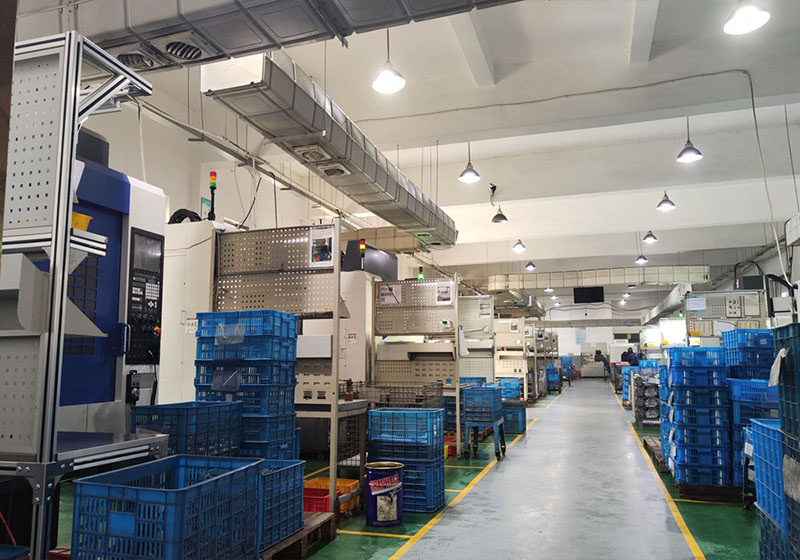

● Integrated CNC Machining

Beyond casting, we provide precision CNC machining, drilling, tapping and other secondary operations to deliver finished components ready for customer assembly.
We have more than 30 CNC machining centers from brands such as DMG Mori, MAZAK and BROTHER from Japan, and HASS from the United States.

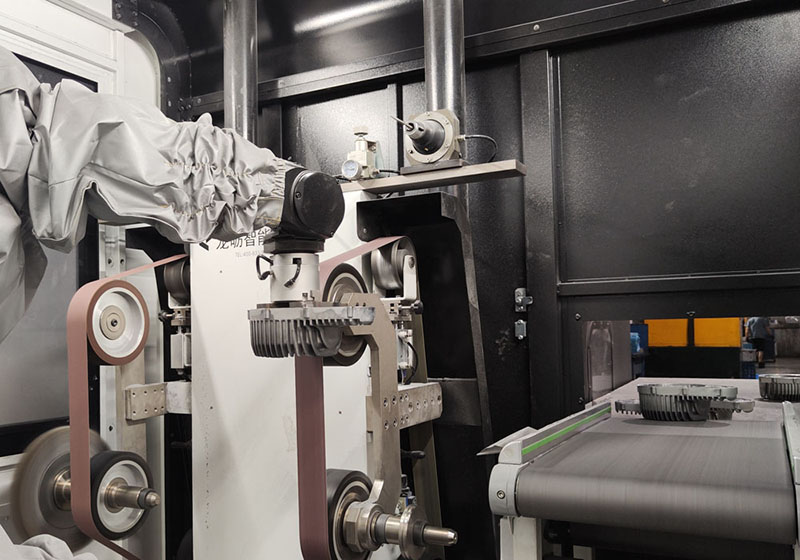

● Automated Robot Grinding of Castings

This workstation, which integrates intelligent grinding, deburring, and polishing, is the result of our collaborative research and development with equipment manufacturers to address the challenges of the post-processing of castings. It has significantly improved the capacity and efficiency of casting post-processing.

● Range of Die-Cast Products

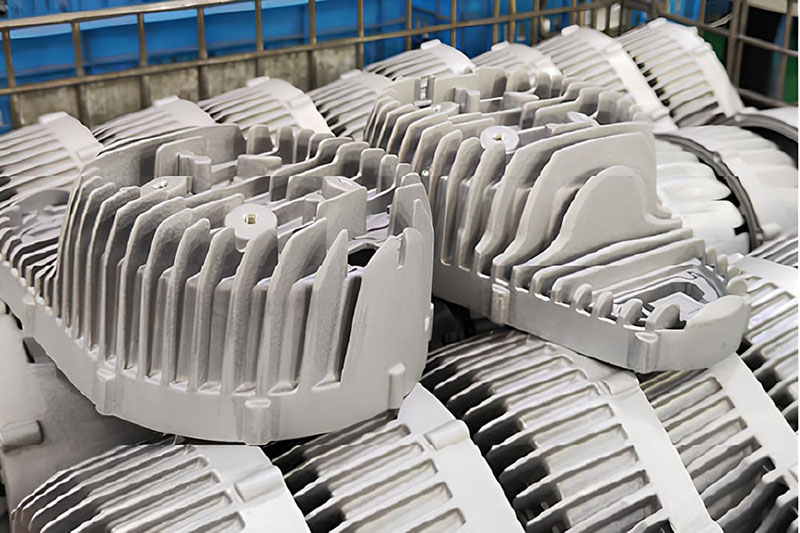

Our high pressure die casting products cover automotive parts, communication equipment, eletric motor housing, home appliance parts, LED lighting parts, heat sink, etc. Products size range from 10x20mm to 800x1100mm, weight ranging from 10g to 20Kg, daily production capacity 16-20 tons.

Material Scope:

● Aluminum

ASTM-A413, A360, A380, A383
JIS-ADC1, ADC3, ADC10, ADC12
DIN-AlSi12, AlSi10Mg, AlSi8Cu3, AlSi11Cu3, AlSI10MnMg, AlSi10Mn, AlSi9Cu3, AlSi11Cu2
ENAC-44100, 43400, 46000, 46400, 43500, 46500
K-Alloy
● Zinc

ZnAl4, ZnAl4Cu0.4, ZnAl4Cu1, ZnAl4Cu3, #2, #3, #5, #7
● Magnesium

AZ91D, AM60B

● Aluminum high pressure die casting product cases

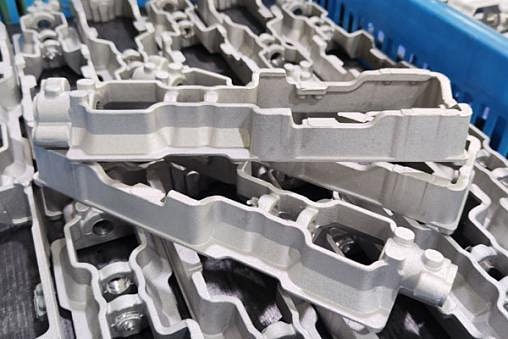

Engineering Vehicle Lampshade

Automotive parts

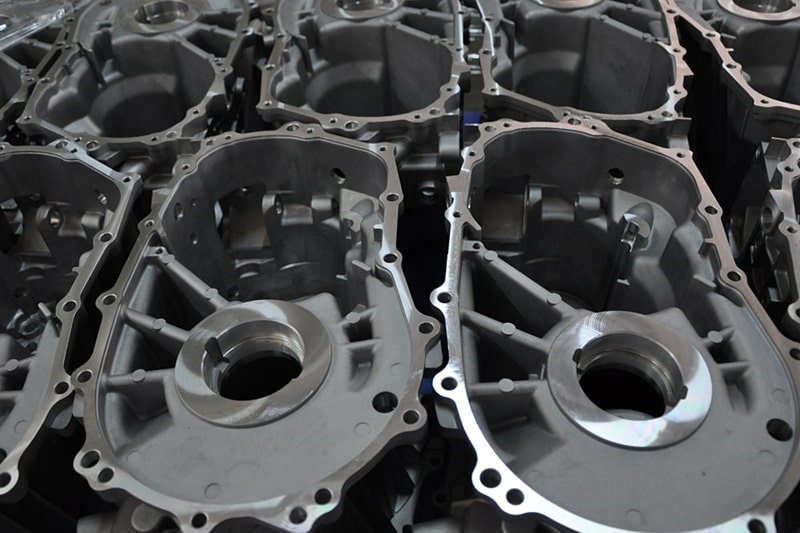

Aluminum Pump Housing

Automotive parts
Aluminum Instrument Holder

Instrumentation

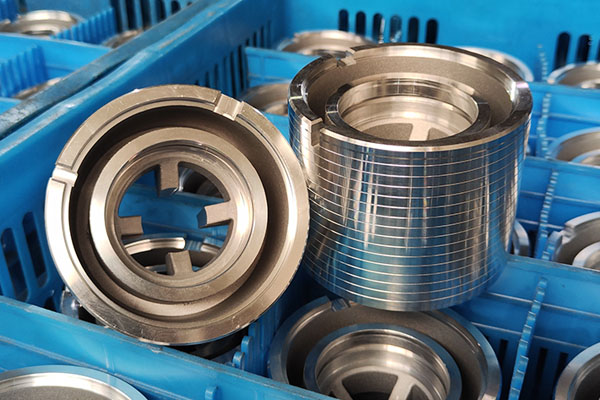

Aluminum Motor Stator Tube

Energy industry
Telecom Parts Heatsink Housing

Telecommunication equipment

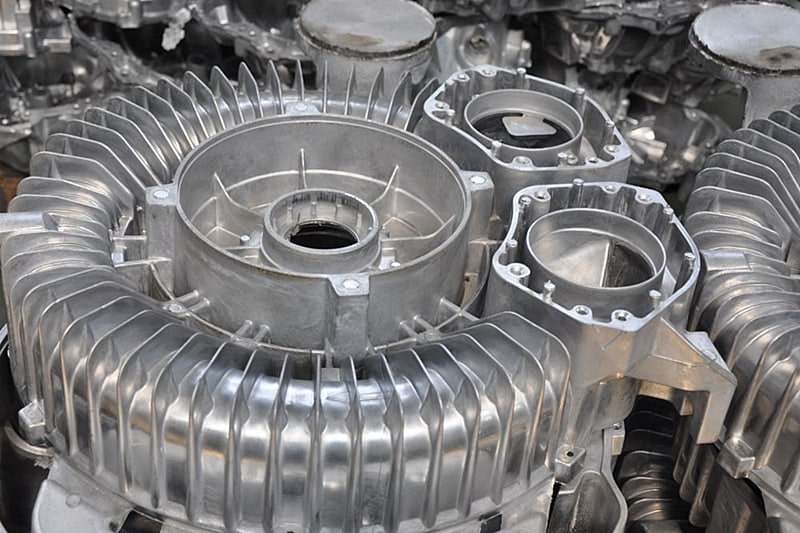

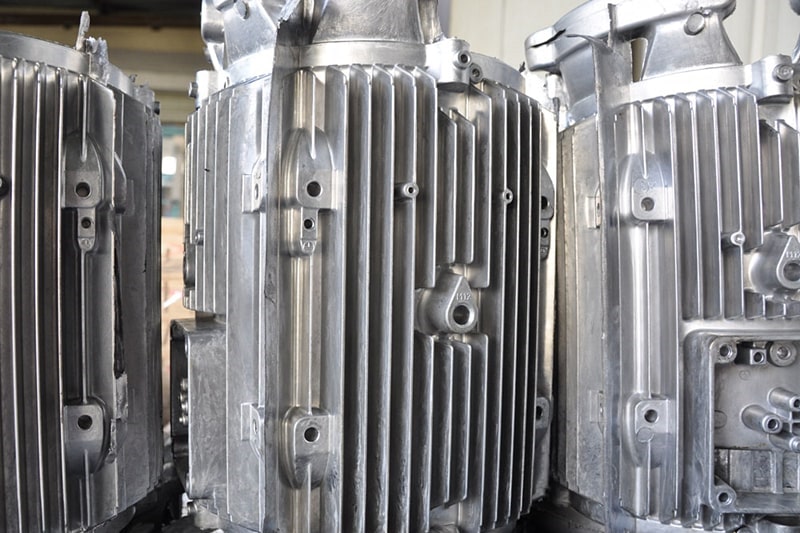

Aluminum Motor Housing

Mechanical Equipment

Why INNOVAW Aluminum High Pressure Die Casting

Aluminum high pressure die casting, one of reliable choice for aluminum casting. Innovaw foundries in the field of high pressure die casting show the advantages of process stability, complete quality control system, high production capacity and personalized service.

Production Capability

More than 20 years of experience in aluminum high pressure die casting product development, with series production capabilities from aluminum and zinc die casting to CNC machining.

We have standardized production process management and large volume production capabilities, fast production delivery in time, and daily production capacity of 16-20 tons.

From mold development to PPAP approval, series, HPDC, machining, surface treatment production, one-stop service throughout the process creating value for customers.
Technology Advantages

We have obvious advantages in die casting automation with robot, metal liquid pressure, speed and temperature control technology.

Our high-pressure die casting technology can produce lighter, thinner and more precise parts. The minimum thickness of the product is 1mm, The tolerance after die casting reaches ISO8062CT level 5, and the accuracy after machining can reach 0.005mm.

We have extensive experience in designing and producing products with complex geometries.

Our professional engineering team provide in-depth support, from DFM analysis, 3D mold design, mold flow simulation analysis, fast prototype turning products from drawings to high-quality products.
Quality Control

Innovaw certified with the world-class IATF 16949 quality control system, the quality management team apply APQP, FMEA, PPAP, MSA, SPC, including control plans and statistics analysis and other core tools to achieve production process control.

Innovaw apply regular process audit via VDA6.3 and product audit via VDA6.5

8D analysis and report is used regular for customer complaints to solve problems from the root.

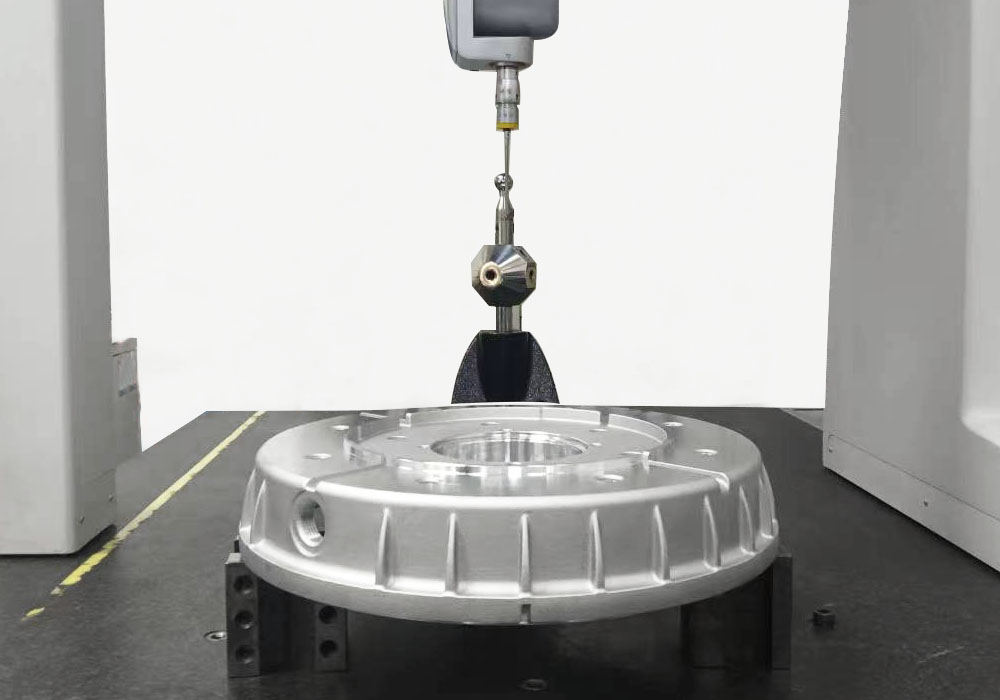

All products need to pass the whole process inspection, including Spectrometer, 3D scan, X-ray, ZEISS CMM, etc. from the first article to final inspection.

All testing equipment is regularly calibrated and the record is traceable.
Service Advantages

Personalized customization, flexible service from 1 piece to millions.

Progress management with real-time update.

All products shipped to meet ROHS requirements, Reach requirements, providing EN10204 3.1 certification, CBAM data.

Product traceability, according to the product batch number to trace any shipment from the raw material incoming inspection to the warehouse materials, process inspection records, product production process parameters, both equipment and operators and other records, etc.

Product Application

Aluminum high pressure die casting parts are used in a wide range of applications. In order to meet the diverse requires of our customers, our professional team can support customers in the process from idea to finished product. Our customers are spread across multiple industries and continue to grow rapidly.

Automotive Parts

Automotive Parts

Aluminum die-casting parts in electronic components, electronic products, consumer electronics, automotive electronics, etc., such as housings, radiators, terminals, control unit frames, etc.
Lighting Industry

Lighting Industry

Aluminum die-casting parts such as lamp bases, lamp cups, brackets, lamp bodies, housings, columns, radiators and other aluminum die-casting parts for street lamps, household lamps, LED lamps and other lighting equipment.

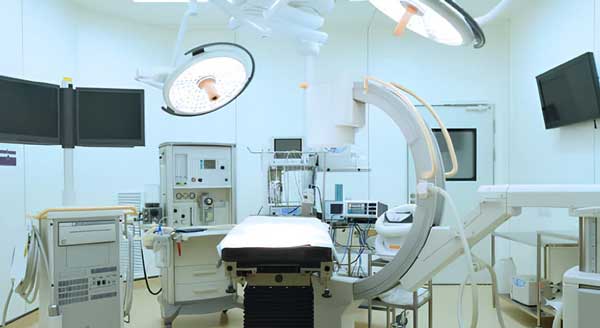

Medical equipment

Medical equipment

Aluminum die-casting parts such as shells, brackets, bases of medical instruments, operating tables, orthopedic equipment, wheelchairs and other accessories, storage racks for surgical instruments, wheels and other aluminum die-casting parts
Telecommunication Equipment

Telecommunication Equipment

Aluminum die-casting accessories for telecommunication equipment, computers, routers, switches, smart terminals and other equipment, such as housings, radiators, junction boxes, substrates, etc.
Energy Industry

Energy Industry

Aluminum die-casting parts for wind power generation facilities, transportation wheels, natural gas flanges, generator components, fuel tanks, turbine impellers, radiators, etc.

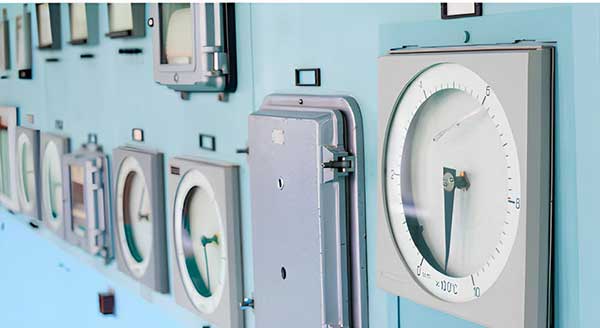

Instruments and Meters

Instruments and Meters

Aluminum die-casting parts in balances, water meters, electronic scales, thermometers, teaching instruments, etc., such as brackets, frames, connectors, etc.
Electronic Devices

Electronic Devices

Aluminum die-casting parts in electronic components, electronic products, consumer electronics, automotive electronics, etc., such as housings, radiators, terminals, control unit frames, etc.
Furniture Industry

Furniture Industry

Cast aluminum tables and chairs, intelligent lock shell, hydraulic chair legs, outdoor tables and chairs, beach chairs, cast aluminum leisure furniture, hardware accessories and other aluminum die-casting parts
Marine Industry

Marine Industry

Aluminum die-casting parts in ships, yachts, mining ships, offshore oil wells and other equipment, such as engine parts, propeller housings, deck accessories, structural parts, etc.

3000+

Parts

15+

Industry

200+

Customer

40+

Country

Innovaw has been deeply engaged in the die casting field and has established efficient aluminum die casting product supply capabilities. In addition to high-pressure die casting production lines, as well as low-pressure die casting, investment casting, gravity casting, aluminum sand casting and CNC machining production lines. At the same time, with the support of China's powerful supply chain, it provides customers with full-chain aluminum die casting product solutions.

Learn More About Innovaw

High pressure die casting is a metal casting process used to create complex shapes with high precision. The process involves forming the metal by forcing it into a cavity of the desired shape. The cavity can be created using a mold or a tool. The melt metal is forced into the mold cavity using high pressure injection. The high pressure die casting process produce products with less cost and faster which is suitable for high volume.

Learn more about high pressure die casting process
